Ohlins Road & Track DFV Suspension Kit - 997 C4, Targa 4, 997 Turbo/S

Ohlins Road & Track DFV Suspension Kit - 997 C4, Targa 4, 997 Turbo/S

$5,400.00
Shipping calculated at checkout.
PASM cancellation
Description

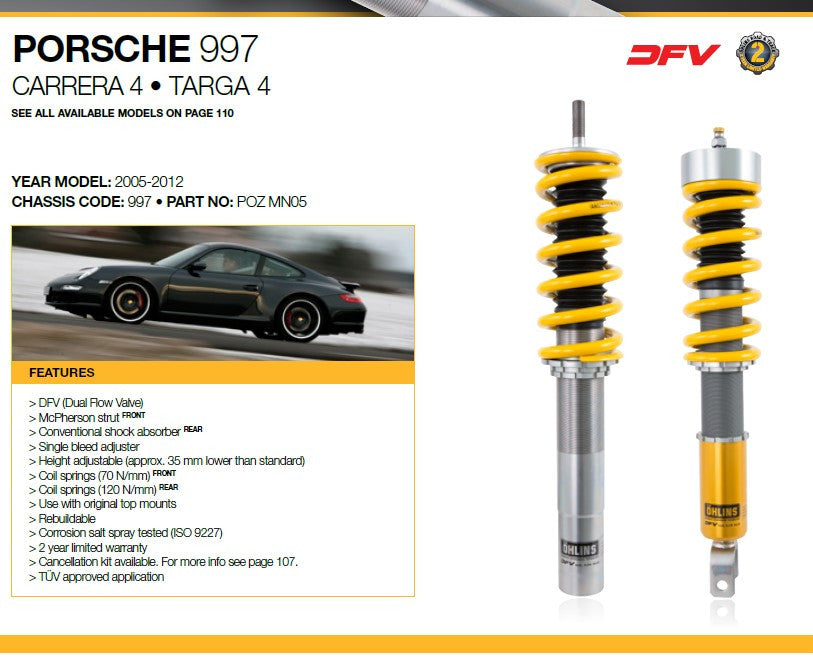

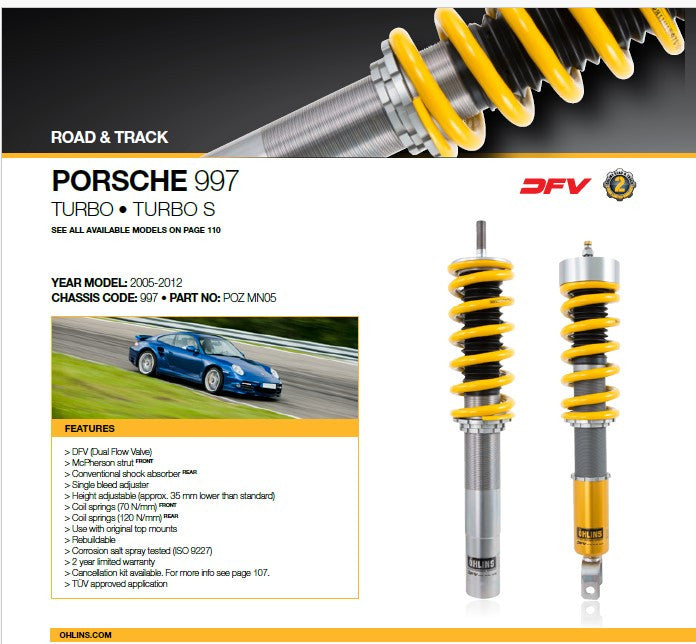

Öhlins Road & Track DFV suspension combines Dual Flow Valve damping with a single bleed adjuster for road and track use. The kit uses MacPherson front struts and conventional rear shock absorbers, with adjustable height approximately 35 mm below standard.

Front spring rate is 70 N/mm and rear spring rate is 120 N/mm. Uses the original top mounts. Rebuildable, corrosion salt-spray tested to ISO 9227, with a two-year limited warranty and TÜV-approved application.

Optional 35020-10 PASM cancellation kit for the 997 coupe adds $650.
Key Performance Benefits

Öhlins Road & Track DFV suspension combines Dual Flow Valve damping with a single bleed adjuster for road and track use. The kit uses MacPherson front struts and conventional rear shock absorbers, with adjustable height approximately 35 mm below standard.

Front spring rate is 70 N/mm and rear spring rate is 120 N/mm. Uses the original top mounts. Rebuildable, corrosion salt-spray tested to ISO 9227, with a two-year limited warranty and TÜV-approved application.
What’s in the Box

Öhlins DFV suspension kit with front and rear springs. PASM cancellation kit included only when selected.
Technical Specifications

Supplier part number: POZ MW10S1. Manufacturer listed by RSS: Ohlins.

Porsche 997 C4, Targa 4 and Turbo/S. Optional 35020-10 PASM cancellation kit is specified for the 997 coupe (non-Cabriolet); confirm body-style compatibility before selecting that option.
Fitment & Compatibility

Porsche 997 C4, Targa 4 and Turbo/S. Optional 35020-10 PASM cancellation kit is specified for the 997 coupe (non-Cabriolet); confirm body-style compatibility before selecting that option.
Support

For fitment and product support, contact rob@levinsonperformance.com.
Installation

Use the original top mounts. Verify body style and PASM requirements before installation; align the vehicle after suspension work.
