TS-2 Stage 2 Suspension Kit (997 C2, C4, GTS, Turbo)

TS-2 Stage 2 Suspension Kit (997 C2, C4, GTS, Turbo)

$6,110.00
Shipping calculated at checkout.
Bearing dust boots
Litronic brackets
Description

RSS Tarmac Stage 2 is a motorsport mono-ball suspension package for the 997 C2, C4, GTS and Turbo, developed through engineering, testing and competition use. RSS highlights its use by professional teams, tuners, track-day drivers and road enthusiasts.

RSS credits the Tarmac Series with the 2013 Rolex Grand-Am GX championship, supply to the 2014 Pirelli GT3 Cup Trophy USA, 2014 FIA Group GT rally victories and Spanish Tarmac Rallye championship, and the 2015 Pirelli World Challenge TC championship.

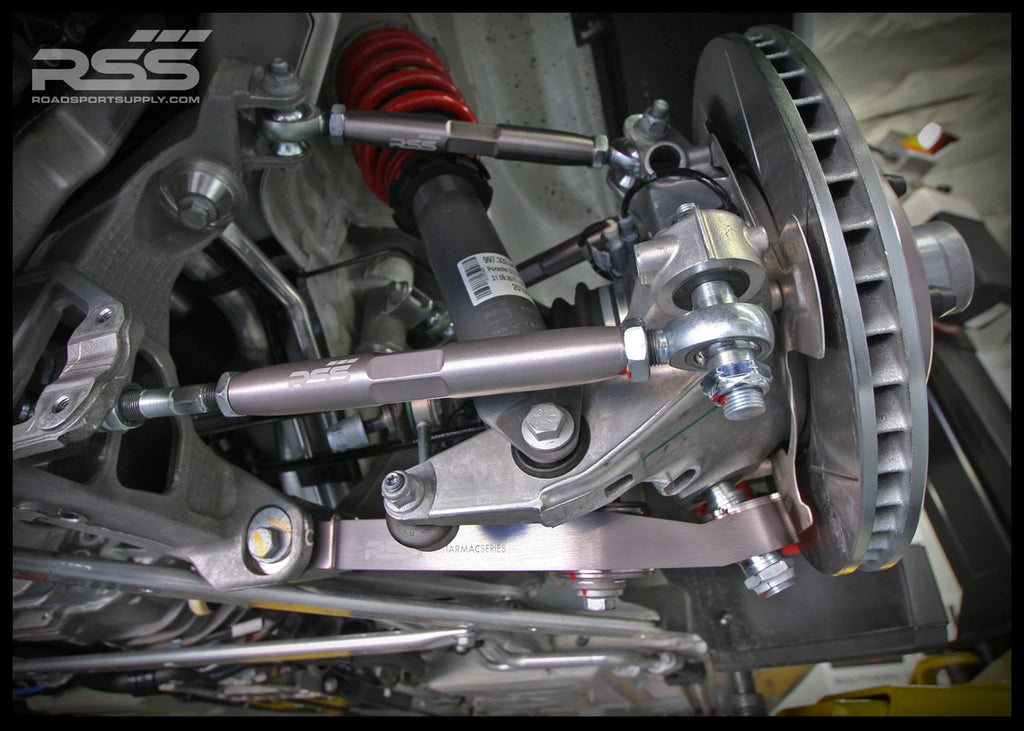

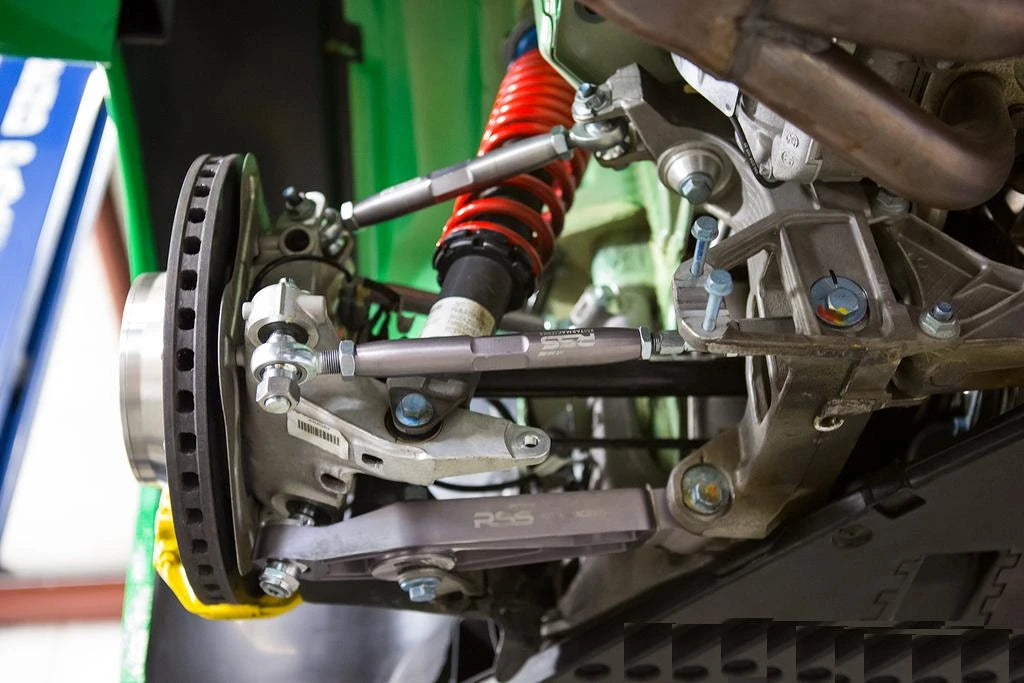

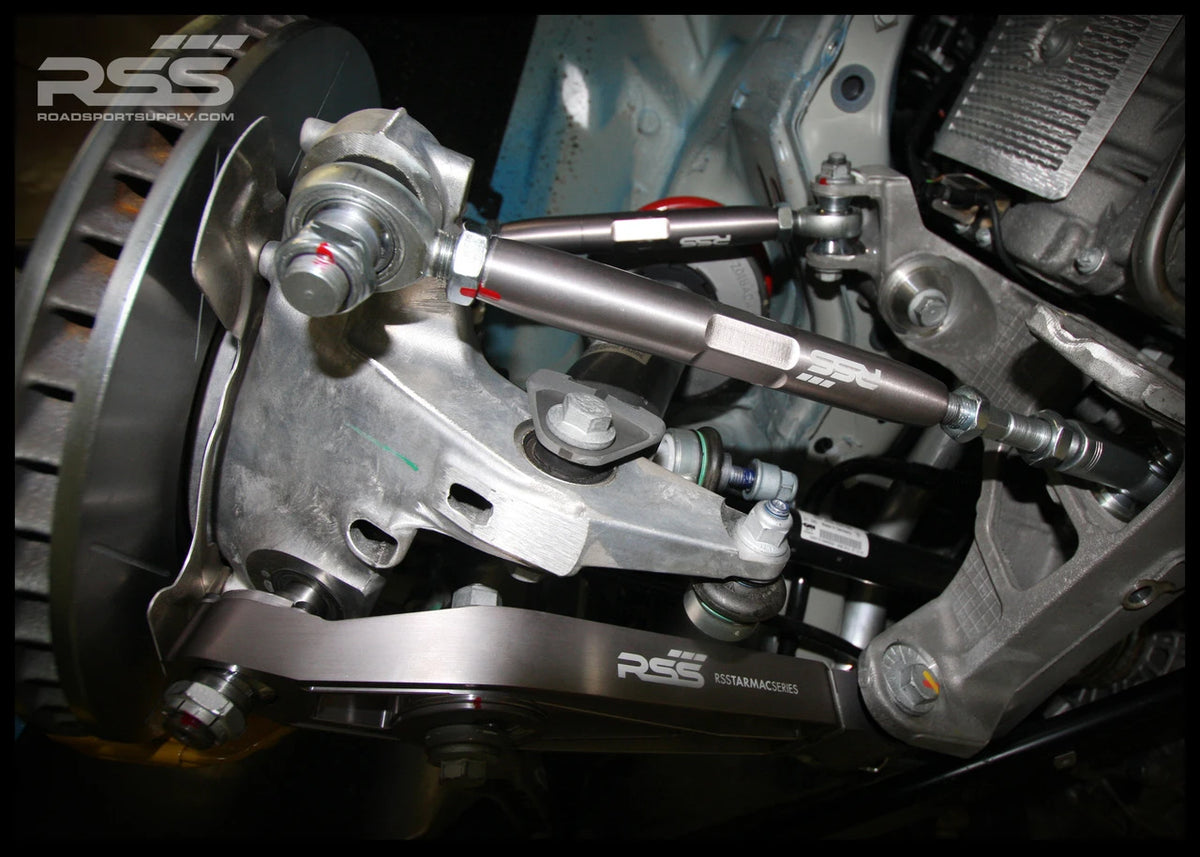

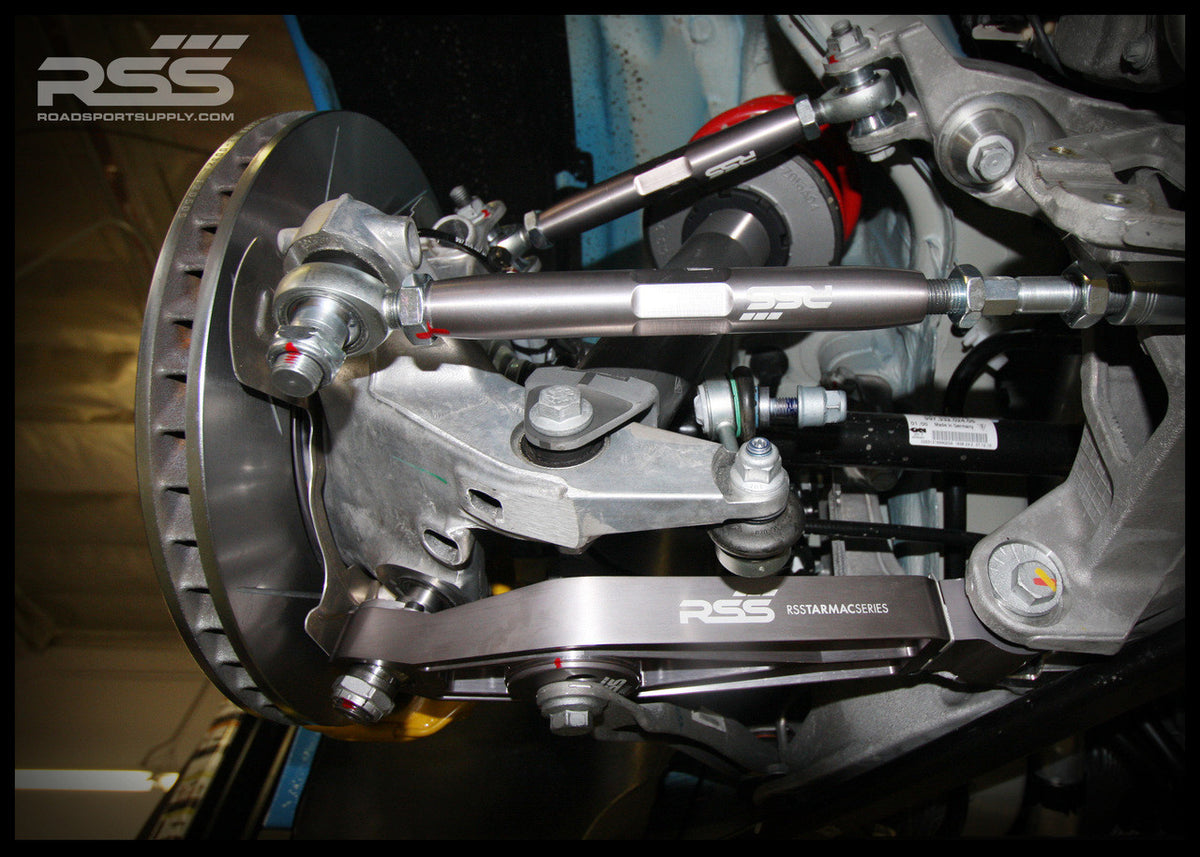

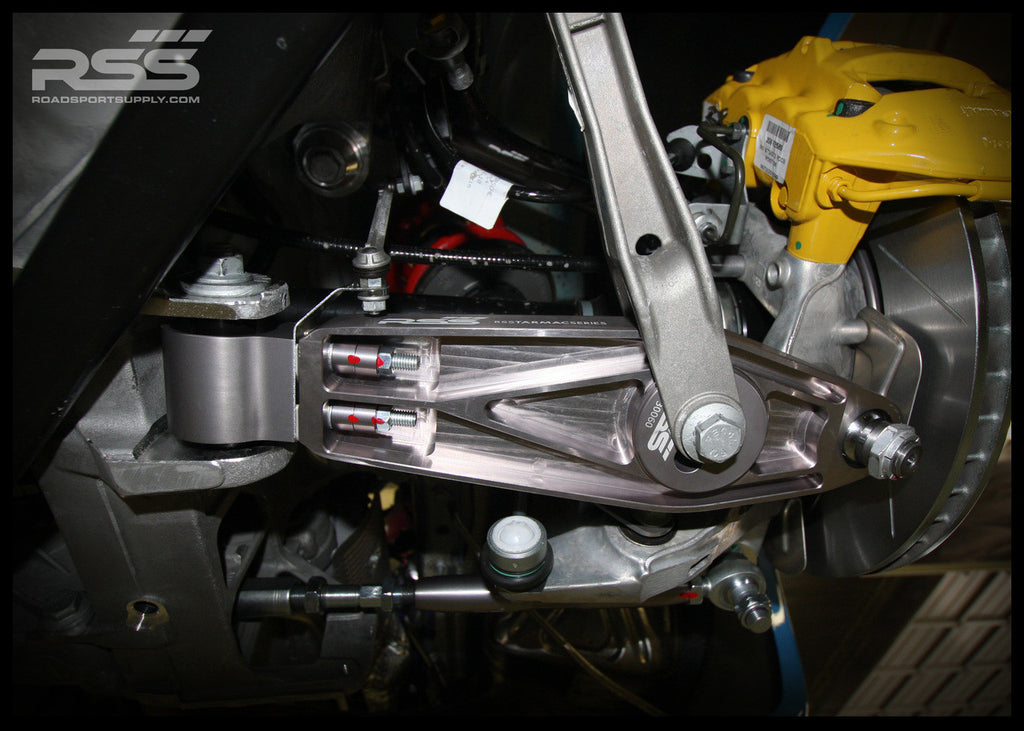

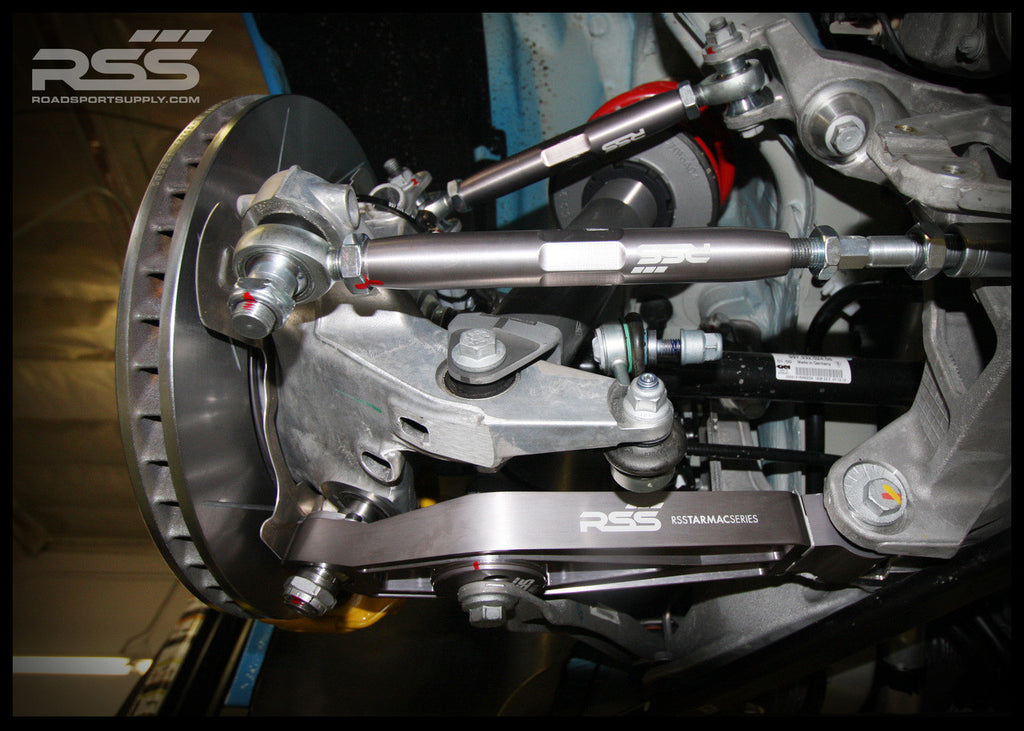

The illustrated package includes front toe/bump-steer links, front lower control arms, adjustable rear upper links, rear toe/bump-steer links with locking plates, and rear lower control arms. Optional upgrades are a 14-piece bearing dust-boot set (+$154) and two 362 Litronic sensor brackets (+$80).

The supplier's fitment guide specifies reduced-travel dampers. Use with incompatible long-travel base dampers can cause suspension binding at full extension/full droop. Installers must verify compatibility. Consult the included sensor-bracket guide for the vehicle's requirements.
Key Performance Benefits

RSS Tarmac Stage 2 is a motorsport mono-ball suspension package for the 997 C2, C4, GTS and Turbo, developed through engineering, testing and competition use. RSS highlights its use by professional teams, tuners, track-day drivers and road enthusiasts.

RSS credits the Tarmac Series with the 2013 Rolex Grand-Am GX championship, supply to the 2014 Pirelli GT3 Cup Trophy USA, 2014 FIA Group GT rally victories and Spanish Tarmac Rallye championship, and the 2015 Pirelli World Challenge TC championship.
What’s in the Box

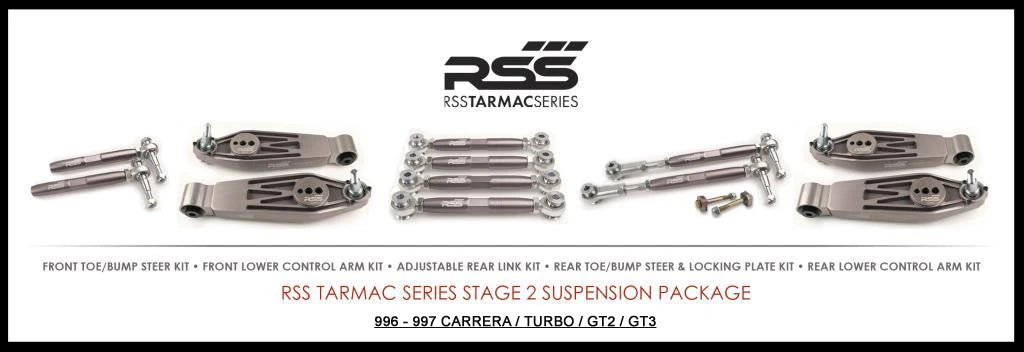

TS-2 chassis-specific suspension package: front toe/bump-steer kit, front lower control arm kit, adjustable rear link kit, rear toe/bump-steer and locking plate kit, and rear lower control arm kit. Bearing dust boots and the two 362 sensor brackets are included only when selected.
Technical Specifications

Supplier part number: TS-2 (997 C2, C4, GTS, Turbo). Manufacturer listed by RSS: RSS.

This TS-2 configuration is for Porsche 997 C2, C4, GTS and Turbo. Lower control arms require lowered vehicles with reduced-travel PASM/sport dampers or suitable coilovers. Not compatible with long-travel base dampers, including base dampers with lowering springs. PCCB-equipped 997 Turbo models may require front brake heat-shield modification. Gallery images show the wider TS-2 family; other chassis use their own kit configurations.
Fitment & Compatibility

This TS-2 configuration is for Porsche 997 C2, C4, GTS and Turbo. Lower control arms require lowered vehicles with reduced-travel PASM/sport dampers or suitable coilovers. Not compatible with long-travel base dampers, including base dampers with lowering springs. PCCB-equipped 997 Turbo models may require front brake heat-shield modification. Gallery images show the wider TS-2 family; other chassis use their own kit configurations.
Support

For fitment and product support, contact rob@levinsonperformance.com.
Installation

Professional fitment and alignment required. Verify full-droop clearance, damper compatibility, brake heat-shield clearance and sensor-bracket requirements before use.
